Features & Specifications

Owner's Manual (this website  -  Motocraft website)

Factory Features & Specifications
Factory goodies include what I believe to be the HPP (High Performance Package) although that assumption remains unconfirmed at this time.

• Dual exhaust.

• RASS (Rear Air Suspension System).

• 16 inch alloy wheels.

• Tires: P225 60R16 Firestone FT70c.

• Differential: code X5:  3.27 locker

• Digital instrument panel.

• ABS.

• Traction control?

• Leather seats.

• Dual front power seats.

• Power lumbar on driver's seat.

• Power windows, mirrors, door locks.

• Gentex auto-dim rearview mirror ( manuf -appears to be "base" model ).

• Auto dusk-to-dawn headlights with adjustable off-delay.

• driver's door keypad entry w/programmable code.

• remote entry/remote trunk/remote panic

• Automatic passenger compartment temperature system.

• Rear floor vent (appears to be left-side only.

• Lighted dual sun visor mirrors.

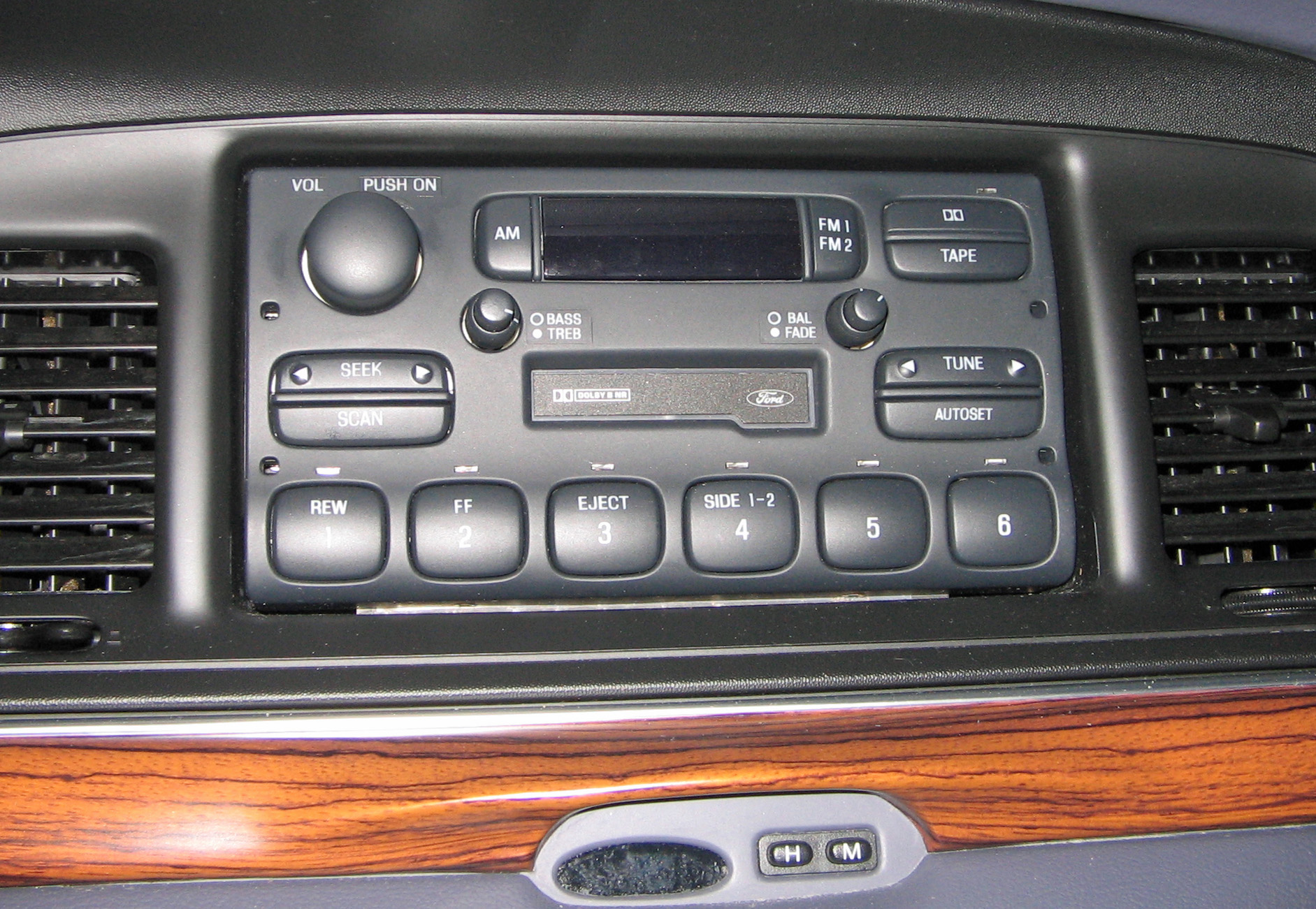

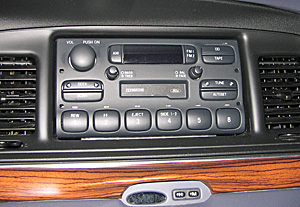

• AM/FM/Cassette that sounds good and gets loud.

• Rear defroster.

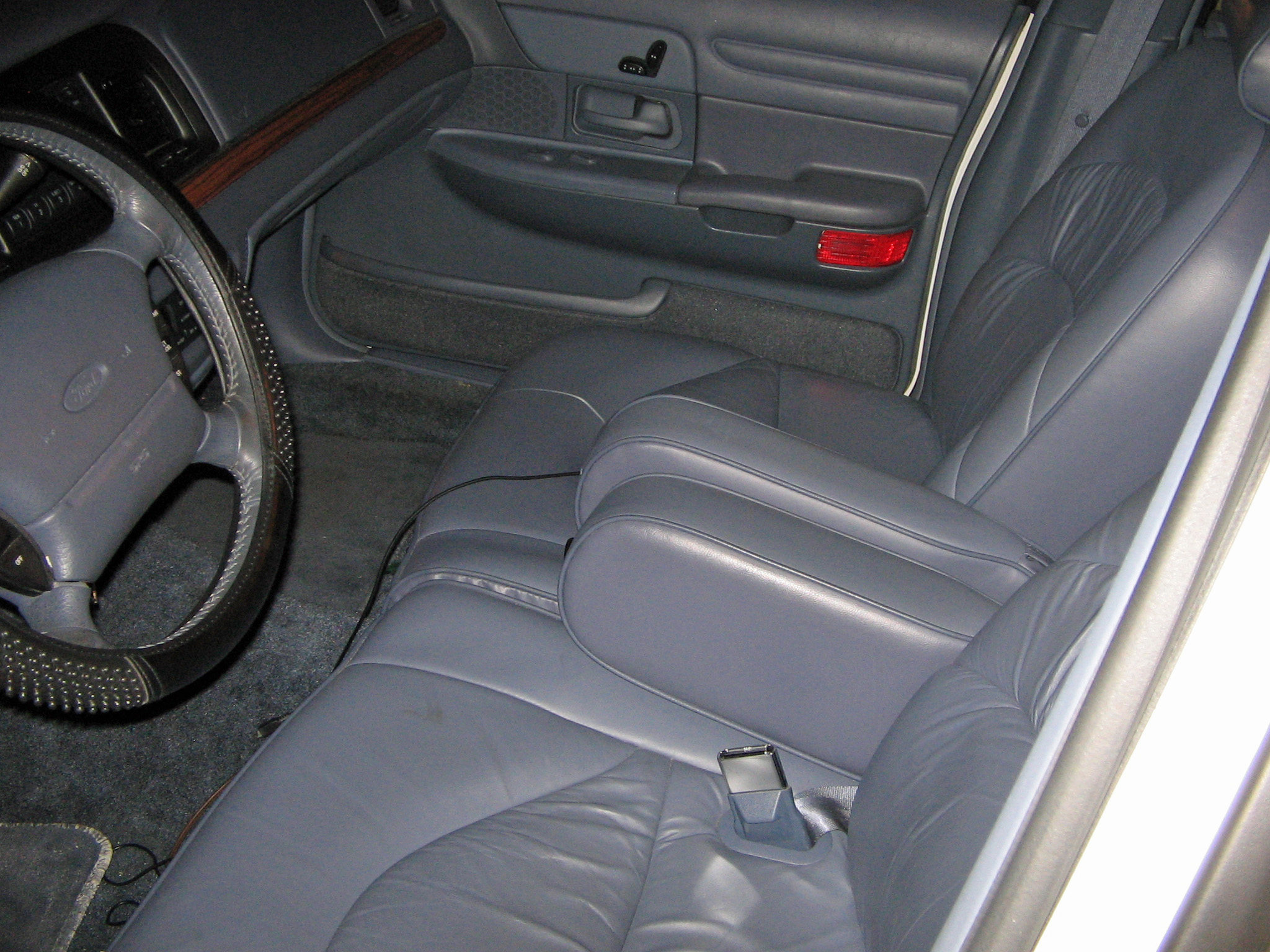

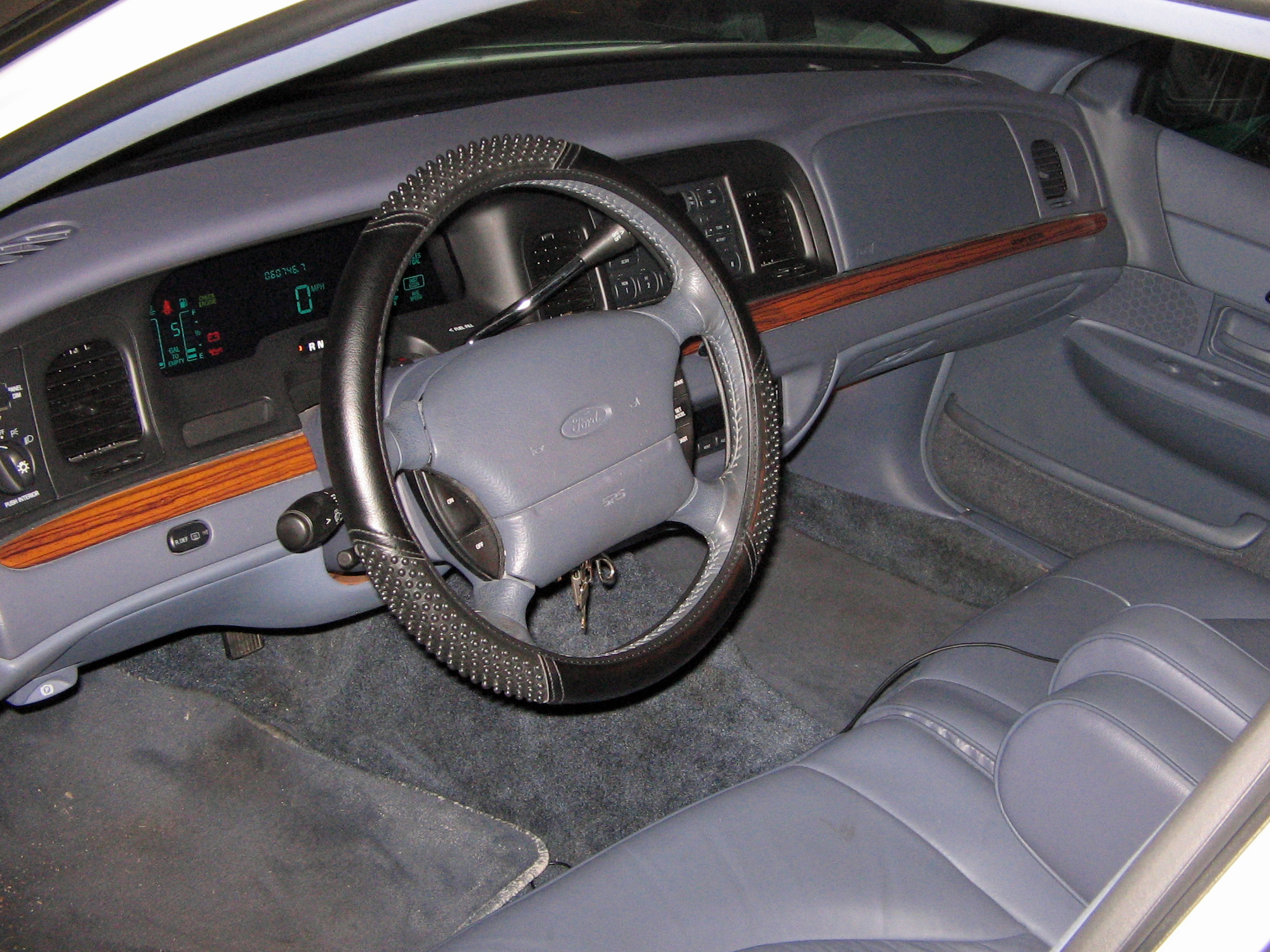

Front area of interior (factory except for black steering wheel cover which I added).

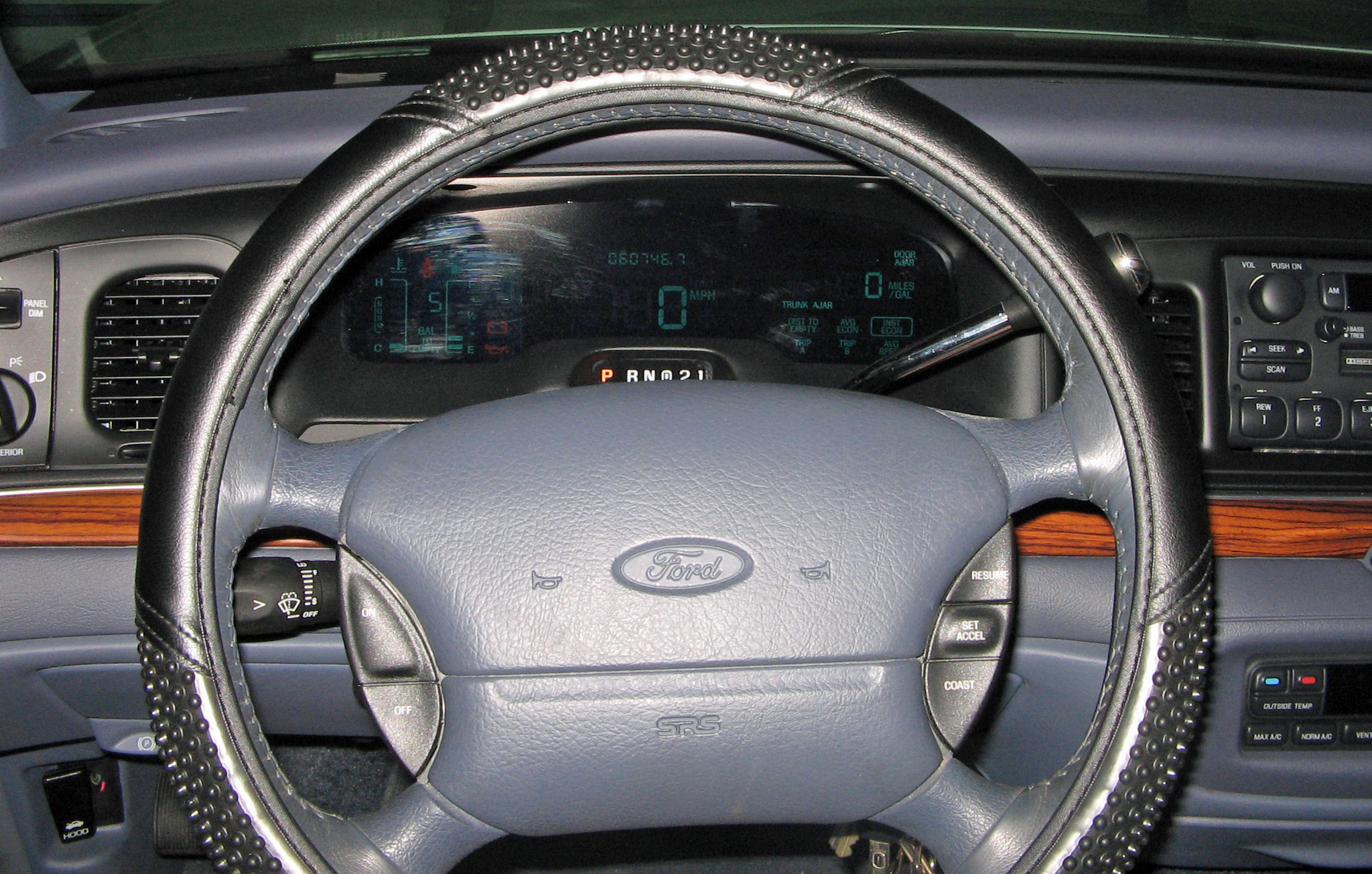

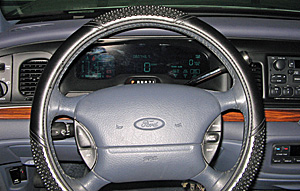

Digital instrument panel (factory).

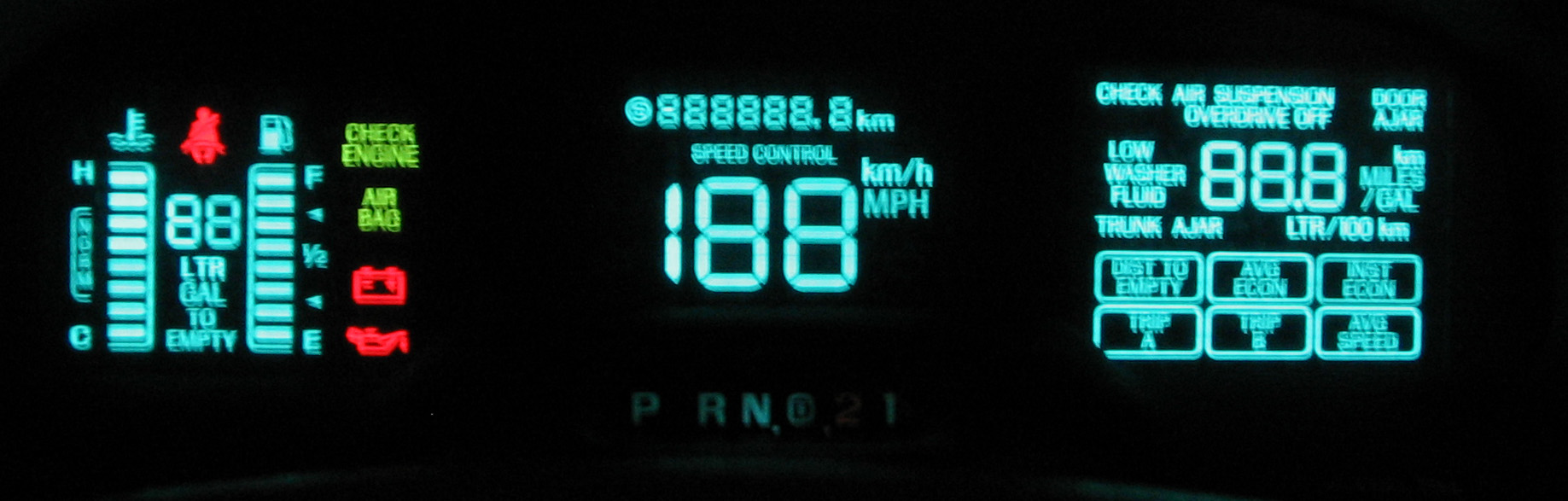

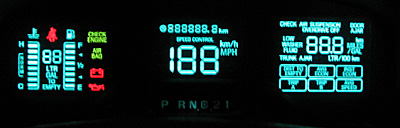

Instrumentation during key-on self-test. (displayed for a duration of ~1/2 second after key turned on)

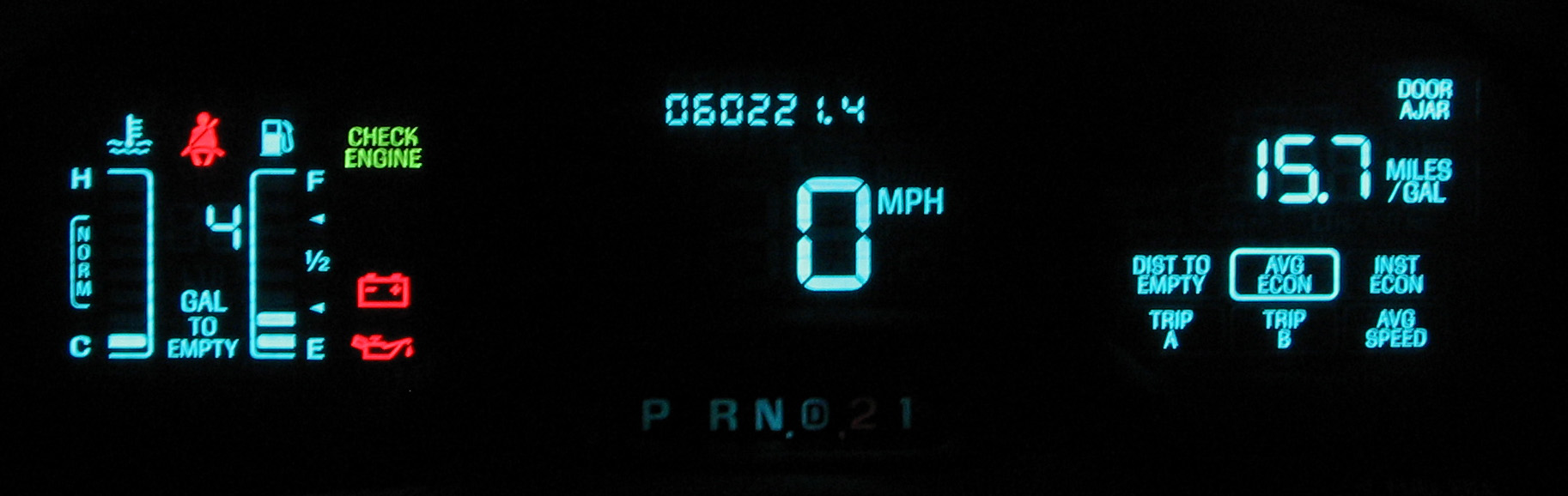

Instrumentation after key-on self-test. (engine not running)

Added Features (non-factory)

• Radar detector: Uniden model RD 6299SWS (1998) ( owner's manual )

• GPS: Garmin StreetPilot C330 (12/2007) ( manuf )
  ( This along with the radar detector tie in to the power feed going to the Gentex auto-dim rearview mirror for ignition-on power-up. )

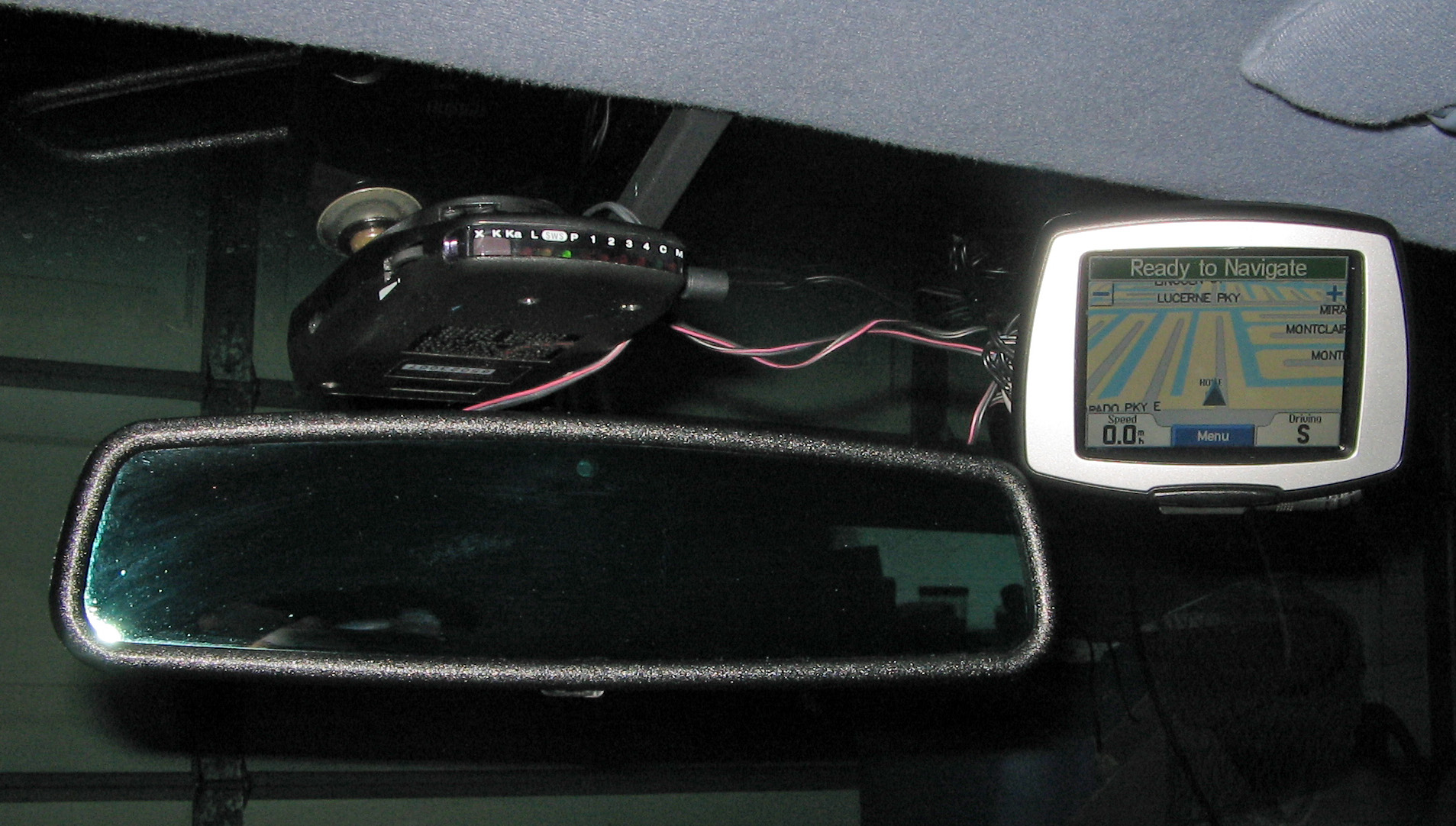

  Radar Detector & GPS (I added) near Gentex auto-dimming mirror (factory).


• Power Inverter - 400 watt Black & Decker  - Model Vector Manufacturing VEC1046BD (2007) ( manuf - Amazon )
  ( Runs a myriad of electronic devices such as cell phone chargers, kid's video games, camcorder charger, laptop, etc.
   Eliminates the need for a bag full of expensive "car adapters".).  120v power has also been run to trunk so that electronic devices stored in the trunk can be kept at "full charge" on trips.

• 40 amp circuit (10 gauge copper stranded) from battery to underneath driver's seat to power the inverter and other small portable electronic devices.

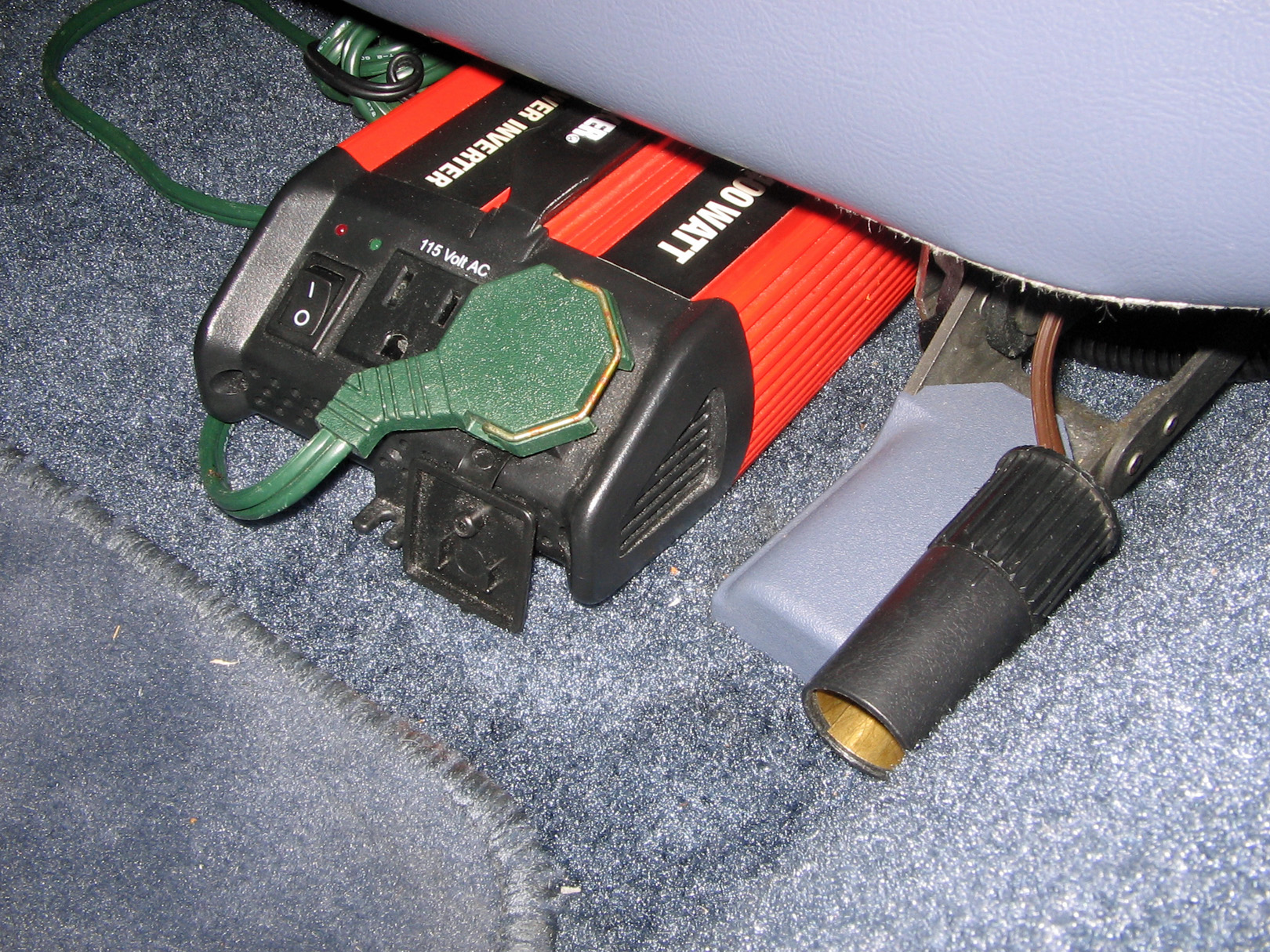

  Inverter underneath passenger front seat supplied with 40A 10 gauge wire from battery (I added).


• Steering wheel cover (black).

• Window Tint: Solargard High Performance Quantum ( manuf - installer )
  Front side windows: QTM28 5237767066
  Rear side windows and vents: QTM19 5235630069
  Rear window: QTM19 5226759053
  However, a problem has arose as a result of this tint being installed on the rear window over the rear defroster:
  Rear tint causes an unacceptable chaotic visual effect at night when car(s) are behind me.  Forum discussion here.

  CAUTION: BE CAREFUL WHAT TINT YOU PLACE ON THE BACK WINDOW IF 1) YOU HAVE AN AERO TYPE CAR, AND 2) IF YOU HAVE A REAR DEFROSTER AND/OR A REAR WINDOW ANTENNA.  The Quantum HP tint that was placed on my rear window is highly reflective, resulting in a very chaotic and uncomfortable visual anomaly at night.

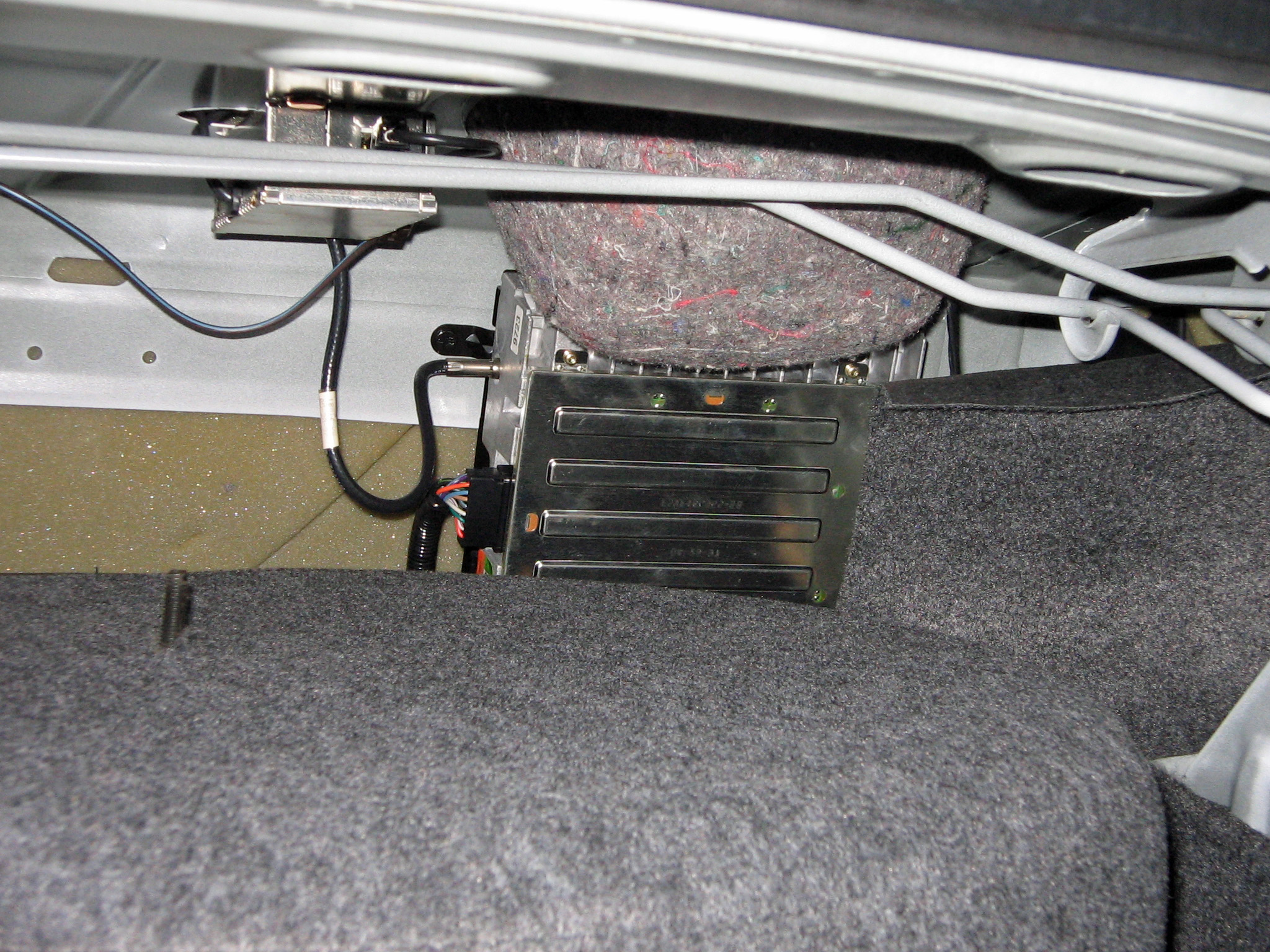

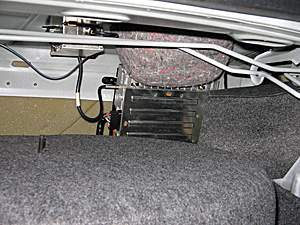

Stereo Box In Trunk (factory) on right side.
